HMD904 Mag Drill – Swivel/Coolant – 115V
The mag drill of choice for fabrication. Lightweight, compact, powerful, & versatile.
- Large 1-1/2″ x 2″ capacity
- Hidden motor cord
- Ergonomic housing
- Increased safety with less maintenance
- Pilot light
- Two stage magnet – 30% power increase when motor is turned on
- Positive slug ejection
- Slot Drive arbor for more accuracy and quicker change out of accessories
- Many accessories are available for a portable machine shop including: drill chucks, tapping, countersink, and more…
- Feed handles quickly change from side to side
- Lift detector safety system
- Rear mounted controls
- Gravity feed coolant system (HMD904 w/ coolant bottle)
- Carrying case included (09202)
- Two year warranty
Swivel Base adds even greater versatility:
• Precisely line up your pilot with the holes center location
• One stroke lock and unlock handle
• Great for horizontal, overhead, tight areas, and getting out over another piece of steel
• Patented
$1,649.00
Specifications
| HMD904S SPECIFICATIONS | |||
| Electrical System | 115V, 50/60 Hz – 9A, 1035W | ||
| Motor | 8A (115V) 450 RPM | ||
| Diameter | 7/16″ – 1-1/2″ (12mm -38mm) | ||
| Depth | 2″ (50mm) | ||
| Cutter/Mount | Rotabroach®, Copperhead™ and Fusion™cutters, 3/4″ (19mm) shank | ||
| Dimensions | 16-3/8″ H x 7-3/16″ W x 8-1/4″ L(416mm H x 183mm Wx 210mm L) | ||
| Swivel Area | 1-1/8″ Wx 1-3/8″ L(28.5mm W x 34.9mm L) | ||
| Magnet | Base | 3-1/8″ Wx 6-9/16″ L(79mm Wx 167mm L) | |
| 1″ Plate(25mm) | Dead Lift 1750 lb. (794 kg) |
Drillpoint Breakaway 995 lb. (433 kg) |
|
| 3/8″ Plate(9.5mm) | 1310 lb.(594 kg) | 710 lb. (322 kg) | |
| Swivel Magnet | 1″ Plate(25mm) | Dead Lift 1340 lb. (608 kg) |
Drillpoint Breakaway Forward – 695 lb. (315 kg) Back – 835 lb. (379 kg) |
| 3/8″ Plate(9.5mm) | 1015 lb.(460 kg) | Forward – 503 lb. (228 kg) Back – 605 lb. (274 kg) |
|
| Weight | 28.9 lb. (13.1kg) • Shipping 43 lb. (19.5 kg) | ||
| Weight (Swivel) | 31.9 lb. (14.5kg) • Shipping 45 lb. (20.4 kg) | ||
| Need annular cutters for this mag drill? Click here to view! | |||
Models
| PART NO. | DESCRIPTION | VOLTAGE | COOLANT BOTTLE | SWIVEL | CUTTER KIT | CSA |
|---|---|---|---|---|---|---|
| 0900101 | HMD904 | 115V | X | |||
| 0904102 | HMD904 | 115V | X | X | ||
| 0904103 | HMD904 | 115V | X | X | ||

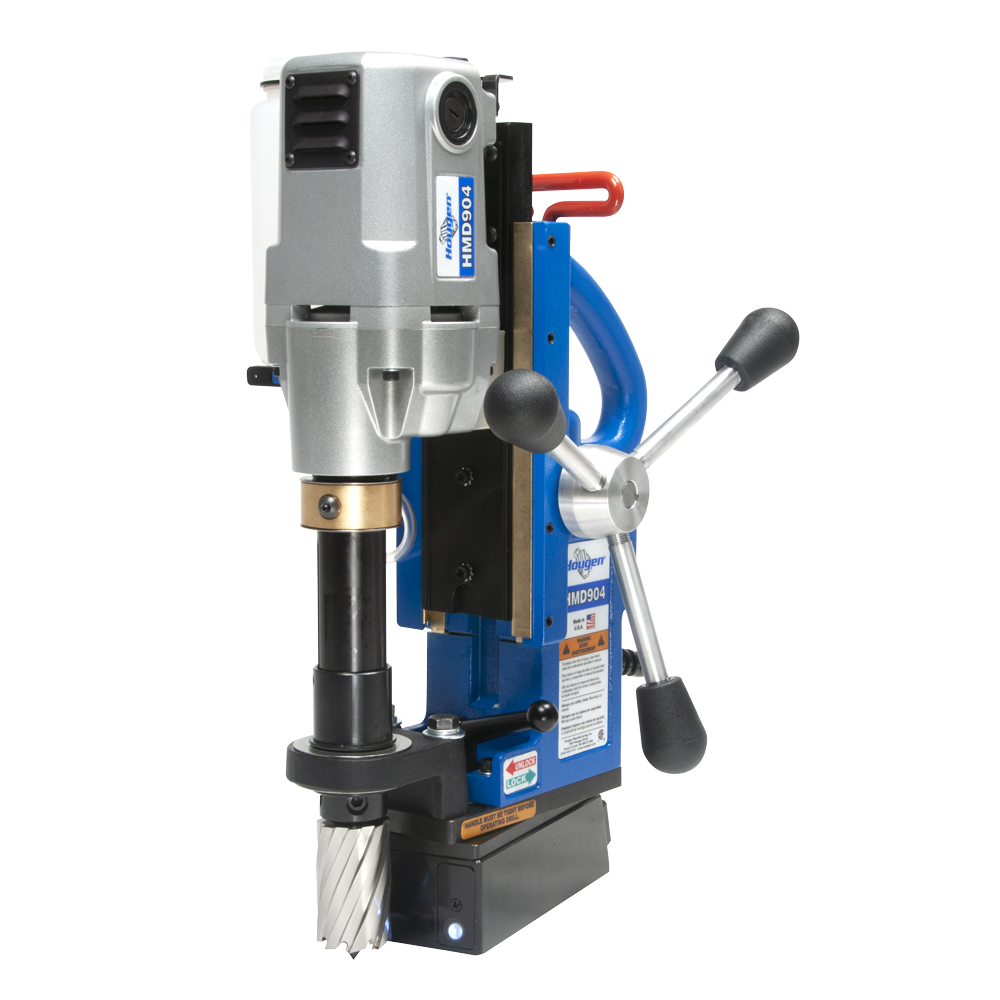

| 0904104 | HMD904 | 115V | X | X | X | |

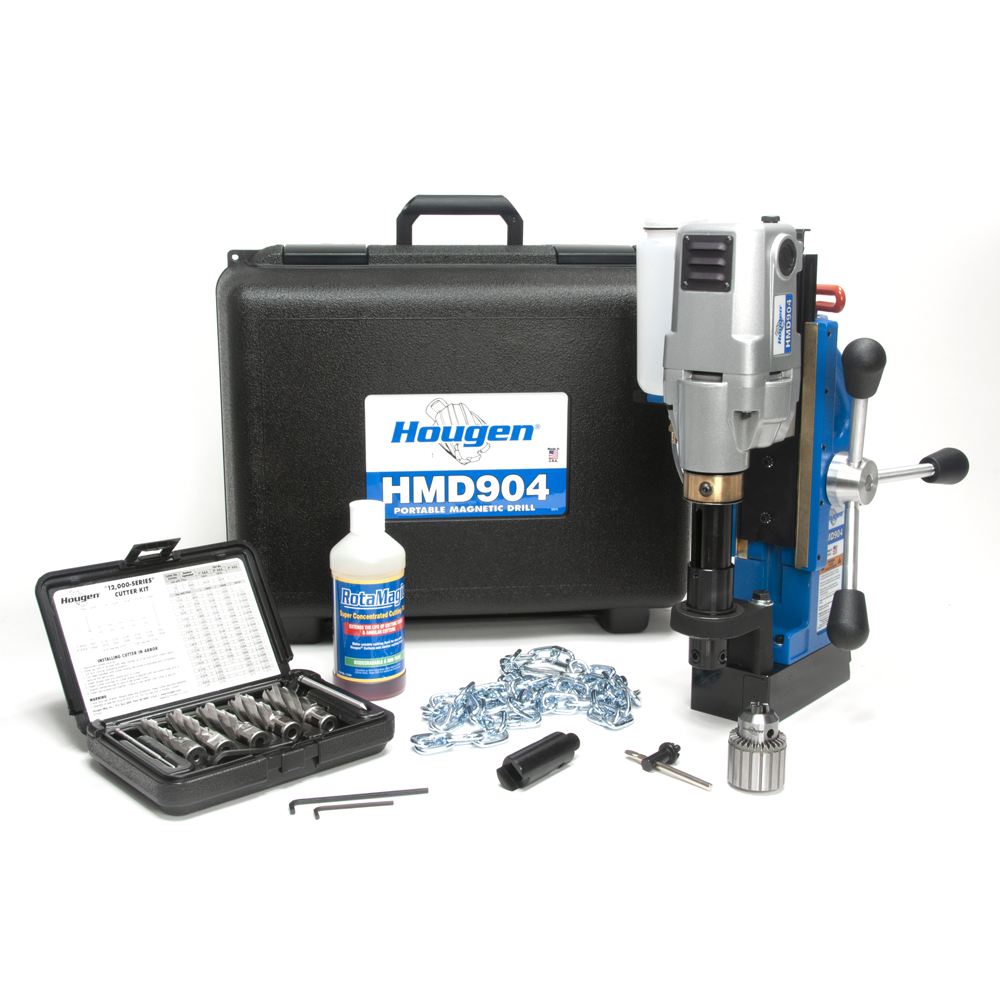

| 0904105 | HMD904 Fab Kit | 115V | X | 12002 | X | |
| 0904109 | HMD904 Fab Kit | 115V | X | X | 12002 | X |
| 0904122 | HMD904 Perm Mag | 115V | X | |||
| 0904202 | HMD904 | 230V | X | |||
| 0904204 | HMD904 | 230V | X | X |
Cutters
“12,000-Series” Annular Cutters
The original mag drill annular cutter, Hougen’s "12,000-Series" are the standard for hole making. Sizes are available up to 3-1/16" in diameter and up to 6" depth of cut
“12,000-Series” TiN Coated Cutters
TiN Coated cutters increase tool life, reduce friction, and operate at cooler temperatures. For materials up to 325 BHN or gummy materials. Special Sizes and coatings are available...
Copperhead™ Carbide Tip Cutters
Carbide Tipped Cutters for extended tool life in abrasive & tough materials. Up to 6" deep and diameters to 3".
Pilots
Sometimes things happen. These tools allow you to take an existing hole and re-drill it to the larger correct size
Accessories
RotaMagic™ Super Concentrated Cutting Fluid
Slick-Stik™ Lubricant
RotaFoam™ Cutting Fluid
Extremely heavy-duty, high performance foamy lubricant for all types of metals and metal working applications.
RotaGel™ Cutting Lube
