Other Tooling for Annular Cutters
Use Hougen annular cutters in drill presses, machine tools and in may other ways to save time and increase productivity.
Drill Press & Stationary Tool Arbor
Use Hougen “12,000-Series” Cutters with stationary tools and drill presses. Triple flatted shank fits 1/2″ drill chucks. Uses 1″ (25mm) depth of cut “12,000-Series” Cutters for materials up to 1/2″ (12.7mm) thick.
“12,000-series” Arbors For Machine Tools
Convert manual and CNC machines such as drill presses, lathes, and mills into fast holemakers. Three styles of holders including R-8, Straight, and Morse taper accommodate Hougen’s “12,000-Series” Cutters for materials up to 2″ thick. Available with coolant inducer assembly.

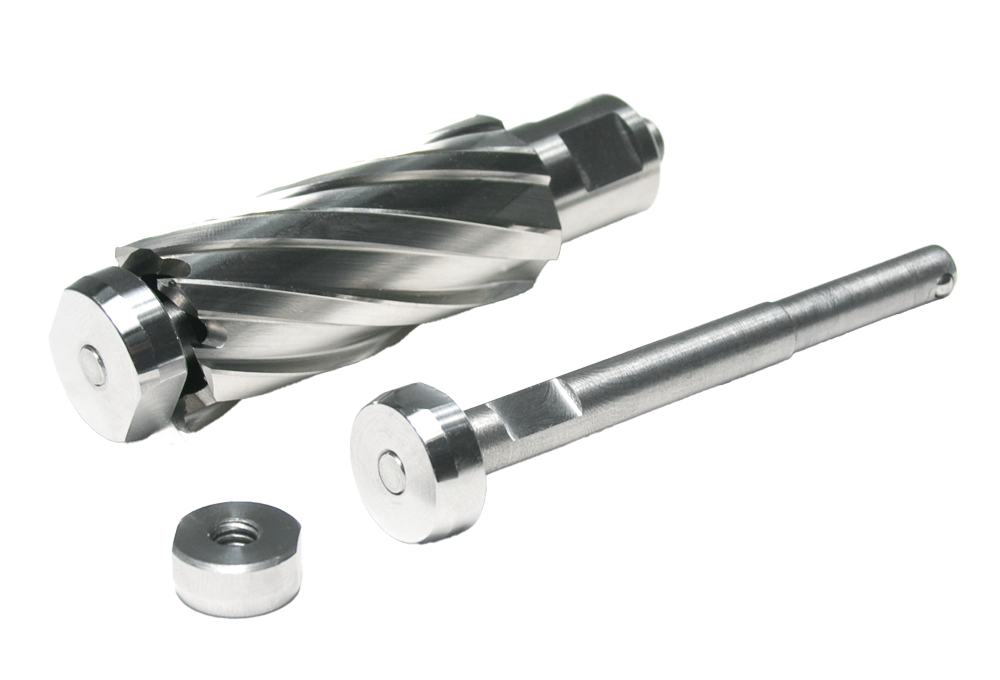

Hole Enlarging Pilots
Take an existing hole and make it larger. Available in three select sizes. Replaceable nose screws on to the end. (Cutters Sold Separately – Only for use w/ 2″ DOC Cutters)
How They Work
Take the correct size cutter and insert the pilot into the cutter. Install the cutter into your drill. Now place the nose of the pilot into your current hole. Add lubricant and drill your hole as you normally would. Your cutter stays centered and redrills the correct size hole.
including R-8, Straight, and Morse taper accommodate Hougen’s “12,000-Series” Cutters for materials up to 2″ thick. Available with coolant inducer assembly.
| PART NO. | DESCRIPTION |
|---|---|
| 07370 | Replaceable Pilot |
| 07373 | 11/16″ Dia. Pilot Assy |
| 07372 | 13/16″ Dia. Pilot Assy |
| 07371 | 15/16″ Dia. Pilot Assy |
| 07368 | 11/16″ Replaceable Nose |
| 07367 | 13/16″ Replaceable Nose |
| 07366 | 15/16″ replaceable Nose |
| 09111 | Hole Enlarging Pilot Kit – Includes one of each nose and a pilot in a plastic case |
