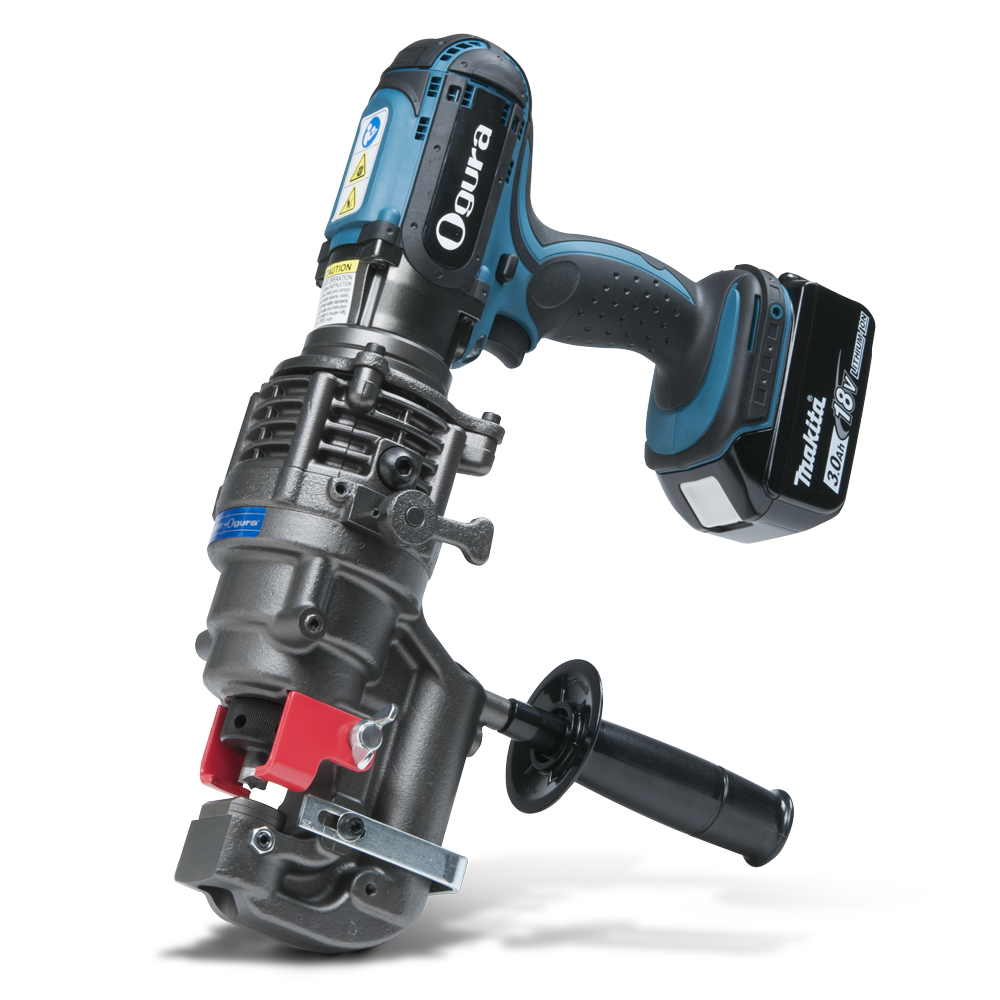

76000PR 18V Cordless Hole Puncher
The Hougen 18V cordless hole puncher is our smallest and most lightweight punch. The unit can quickly put holes through quarter inch material. At just 17.4 lbs (7.9 kg), the 76000PR is easy to move around or carrying for variety of applications. Punch round and oblong holes in materials from up to 1/4″ (6.4mm) thick. Easily confirm the hole position with the jog down feature. Punch automatically returns to the starting position after the punching cycle is complete. Or if punch resists returning to the home position, use the power retract.
Punch Round & Oblong Holes in These Materials
$4,369.61
Whether you’re drilling onsite in B.C., fabricating in Alberta, or maintaining infrastructure in Ontario, we deliver the tools you need, on Canadian time and Canadian terms.
Specifications
| SPEC | INFO |
|---|---|
| Pressure (Tons) | 11 |
| Approximate Punching Speed | 4.5 seconds |
| Maximum Hole Size – Round | 19/32″ – (15mm) |
| Maximum Thickness – Round | 1/4″ – (6.35mm) |
| Maximum Hole Size – Oblong | 7/16″ x 5/8″ (11mm x 15.9mm) |
| Maximum Thickness – Oblong | 1/4″ – (6.35mm) |
| Maximum Punch Throat Depth | .98″ – (25mm) |
| Weight | 17.4 lbs – (7.9 kg) |
Dimensions
| – | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| 76000PR | .28 | .98 | .51 | 1.77 | 1.54 | 1.57 | 1.42 | 1.42 | 1.82 | 15.39 |

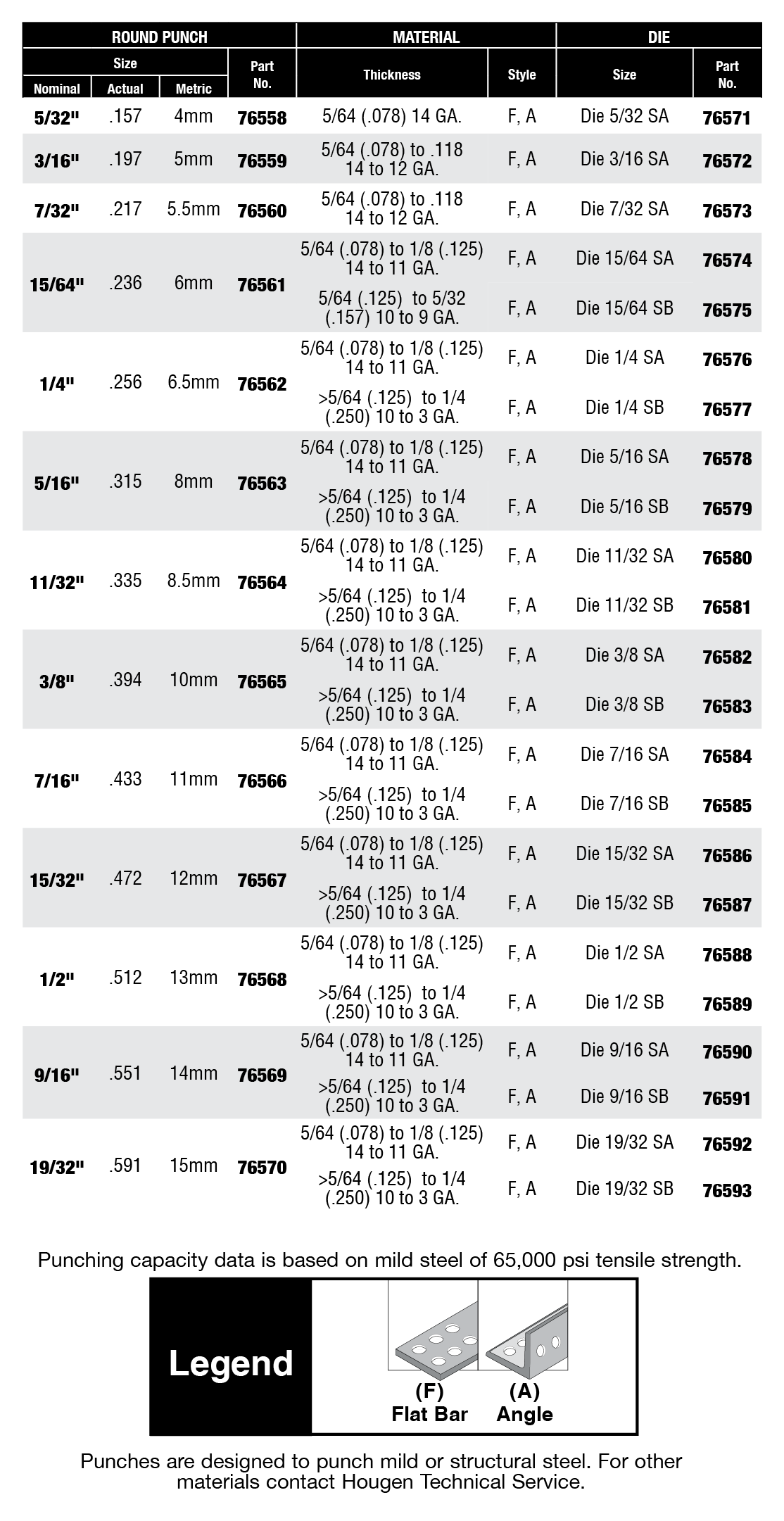

Round Punch & Dies

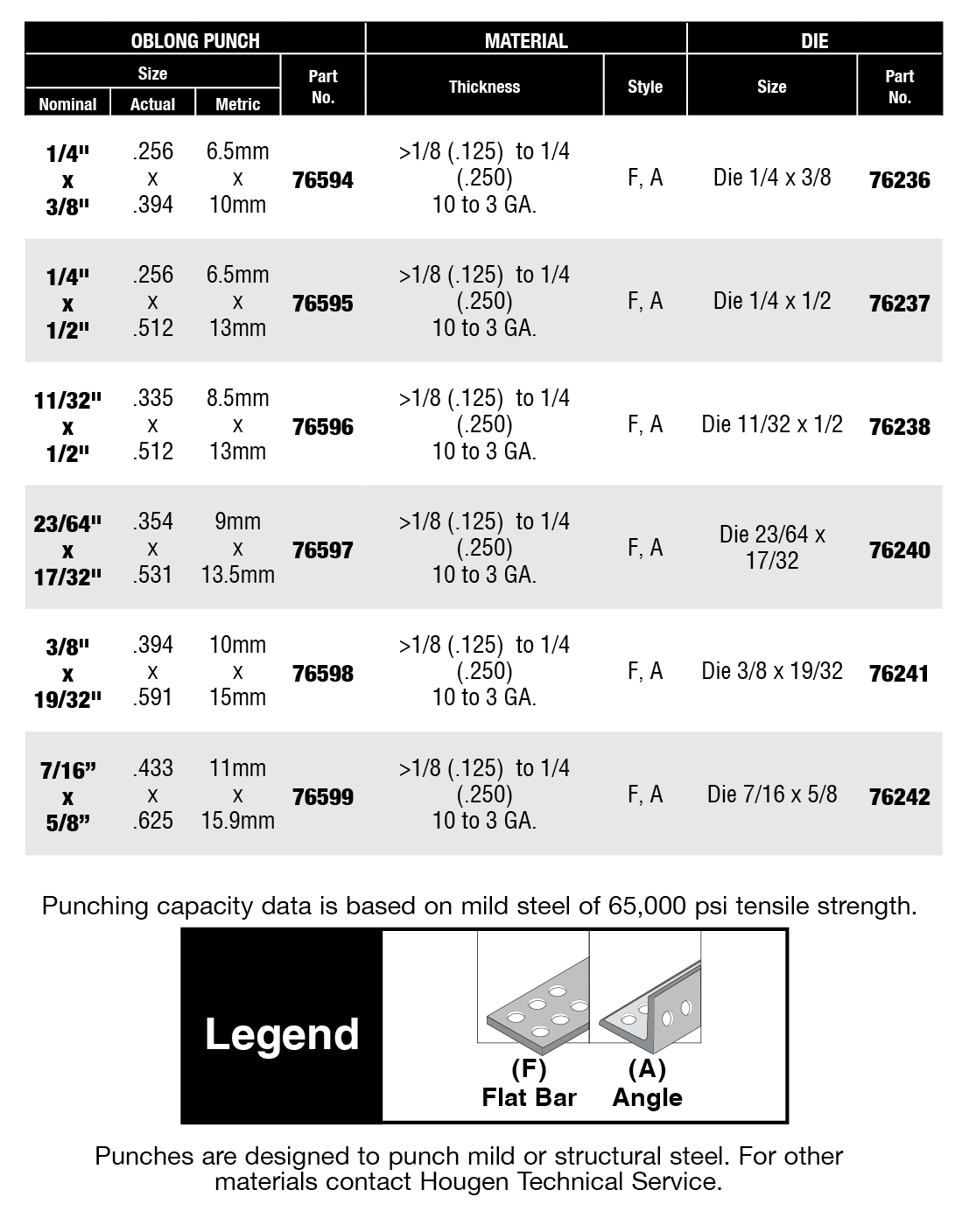

Oblong Punch & Dies
OP Manual
