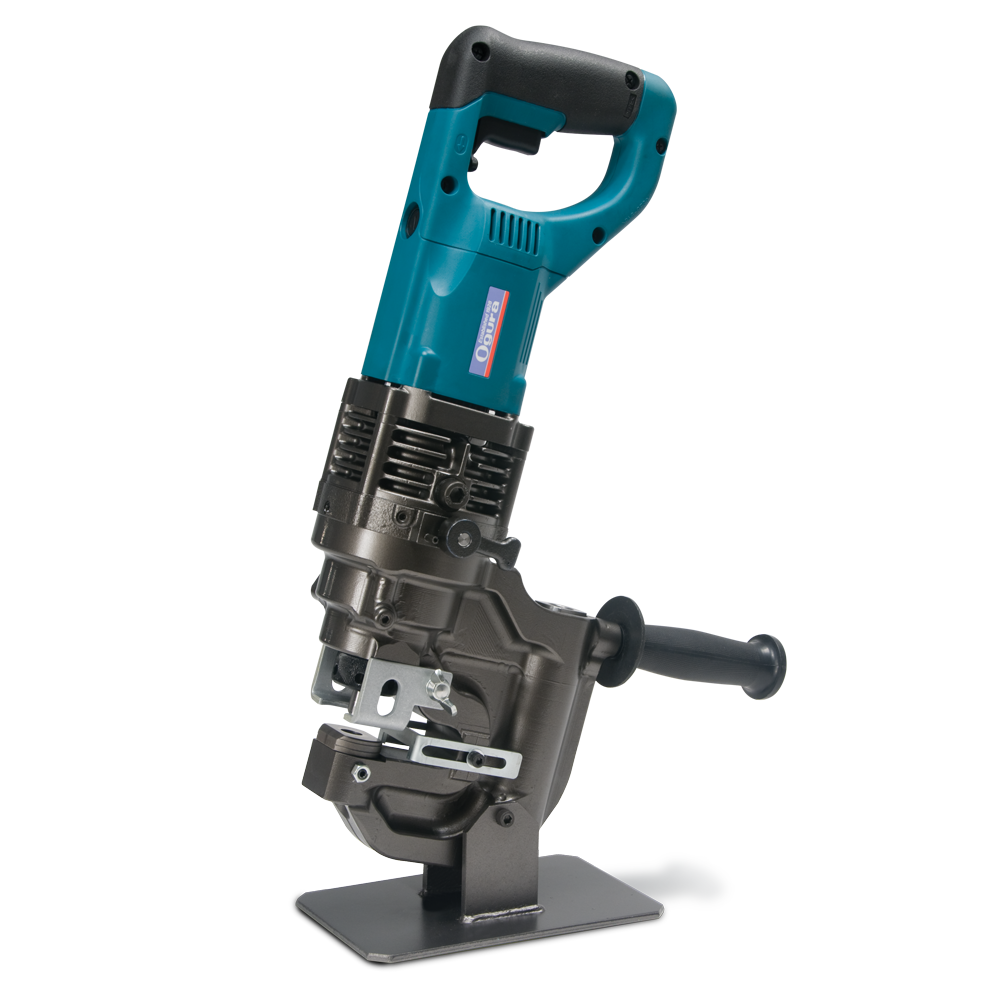

75002.5PR – Electro-Hydraulic Hole Puncher
Portable electro-hydraulic punch with 10.1 tons of punching pressure can quickly punch through 1/4″ materials in 2.3 seconds. Easily confirm the hole position with the jog down feature. Punch automatically returns to the starting position after the punching cycle is complete. If punch ever resists returning to the home position, squeeze the trigger for power feed return.
The 75002.5PR is a self contained unit that only requires electrical power. There is no separate hydraulics or power packs required.
Punch Round & Oblong Holes in These Materials
Includes: work stand, foot switch, 7/16″ (11mm) punch & die, tool kit and carrying case.
Hougen-Ogura Punches are designed for mild & structural steel, but can be used in other materials. Using in stainless or other materials significantly reduces the capacity. Consult Hougen Technical Support for questions about your particular application: (810) 635-7111
$3,888.00
Specifications
| SPEC | INFO |
|---|---|
| Pressure (Tons) | 10.1 |
| Approximate Punching Speed | 2.3 seconds |
| Maximum Hole Size – Round | 3/4″ – (19mm) |
| Maximum Thickness – Round | 1/4″ – (6.4mm) |
| Maximum Hole Size – Oblong | 9/16″ x 13/16″ (14mm x 21mm) |
| Maximum Thickness – Oblong | 1/4″ – (6.4mm) |
| Maximum Punch Throat Depth | 2-3/8″ – (60mm) |
| 120V/50-60Hz AC | 6.3 Amps / 710 Watts |
| 230V/50-60Hz AC | 3.3 Amps / 710 Watts |
| Weight (less work stand) | 24.9 lbs – (11.3 kg) |
| Shipping Weight (approx) | 41.2 lbs – (18.7 kg) |
Dimensions
| – | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| 75002.5PR | .33 | 2.36 | .59 | 2.66 | 2.36 | 1.77 | 1.65 | 1.65 | 2.05 | 19.37 |

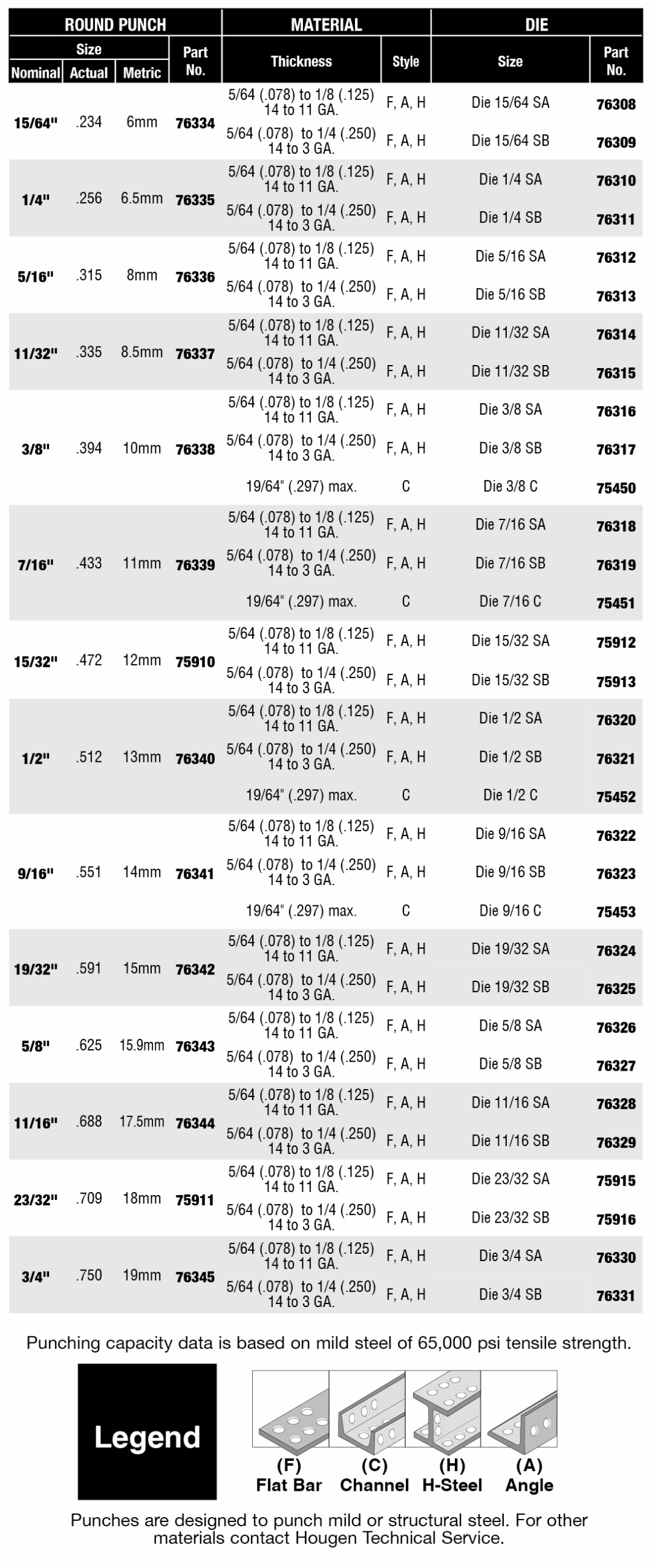

Round Punch & Dies

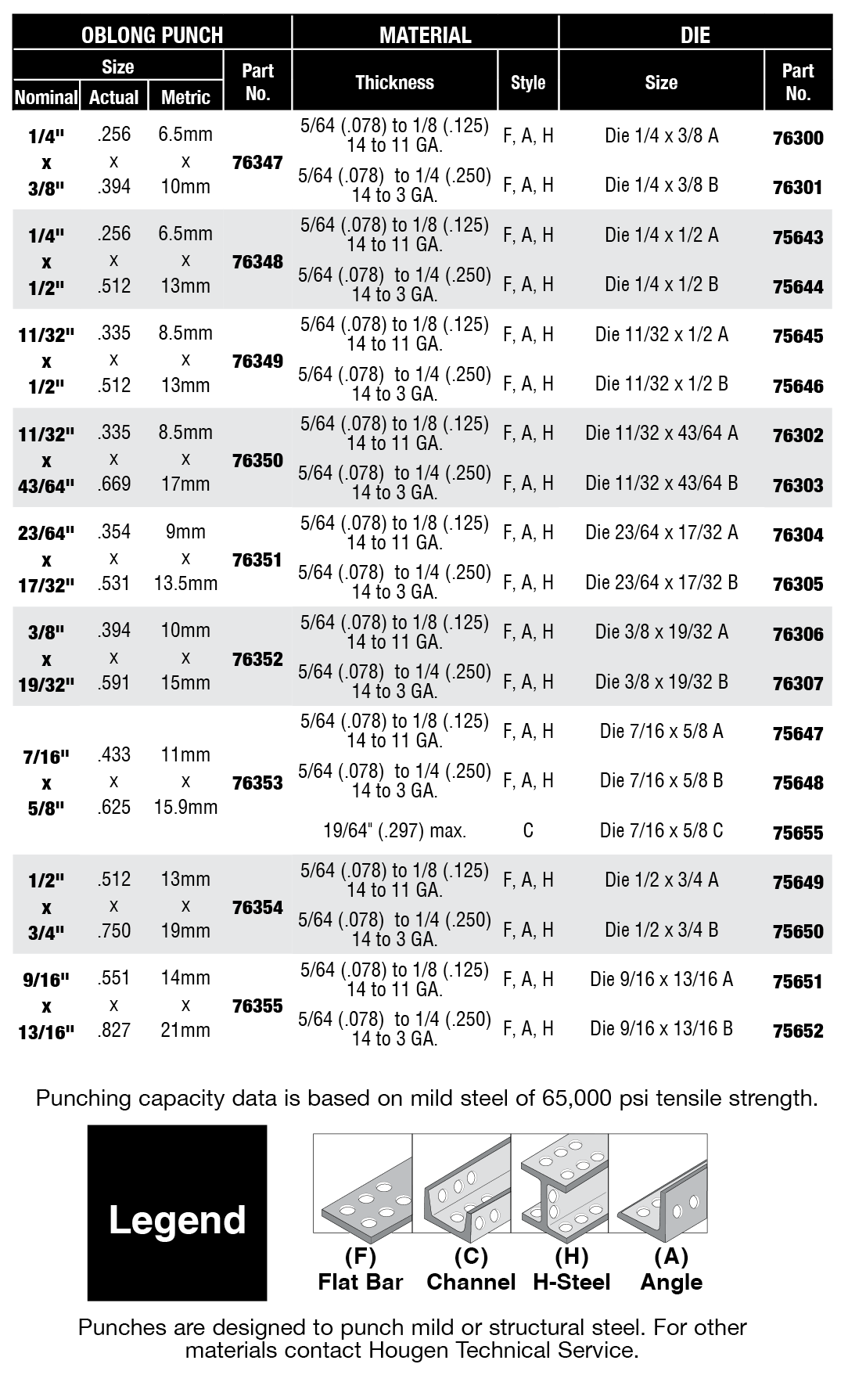

Oblong Punch & Dies
OP Manual
Service & Support
TWO YEAR WARRANTY
