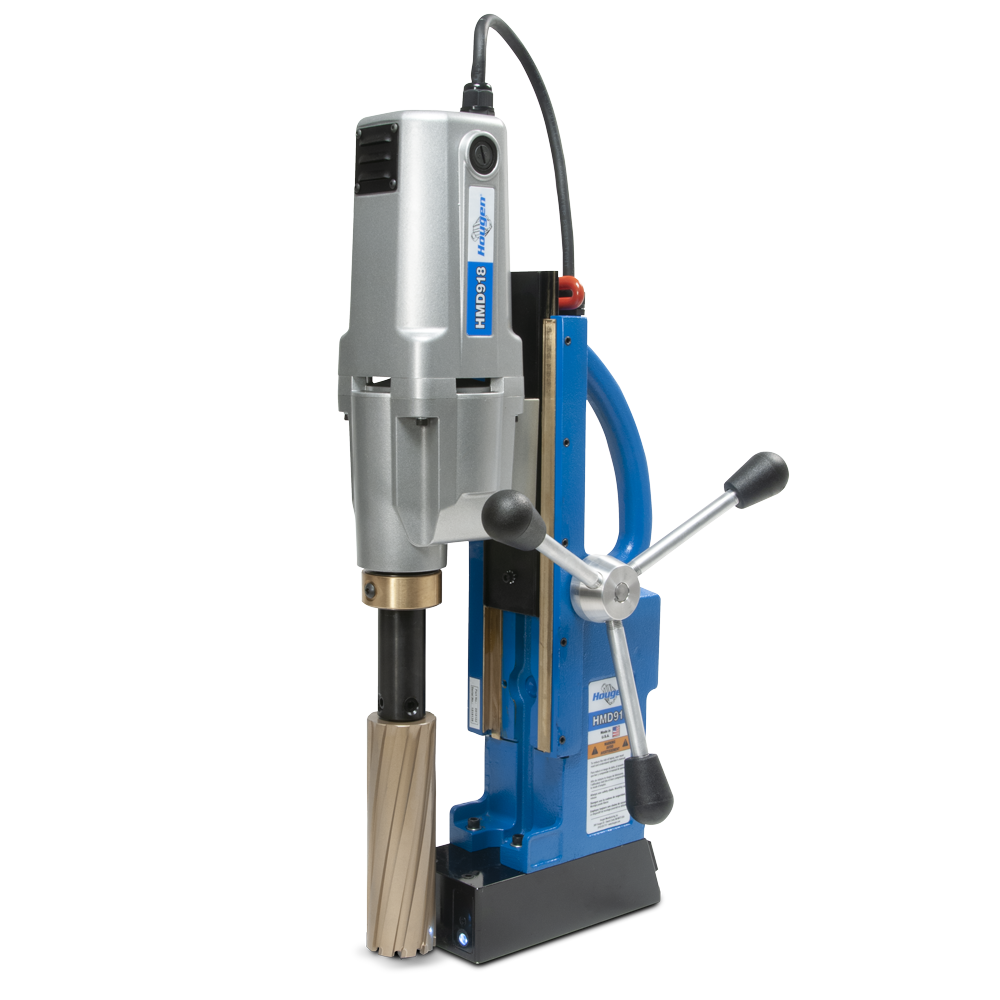

HMD918 – Magnetic Drill

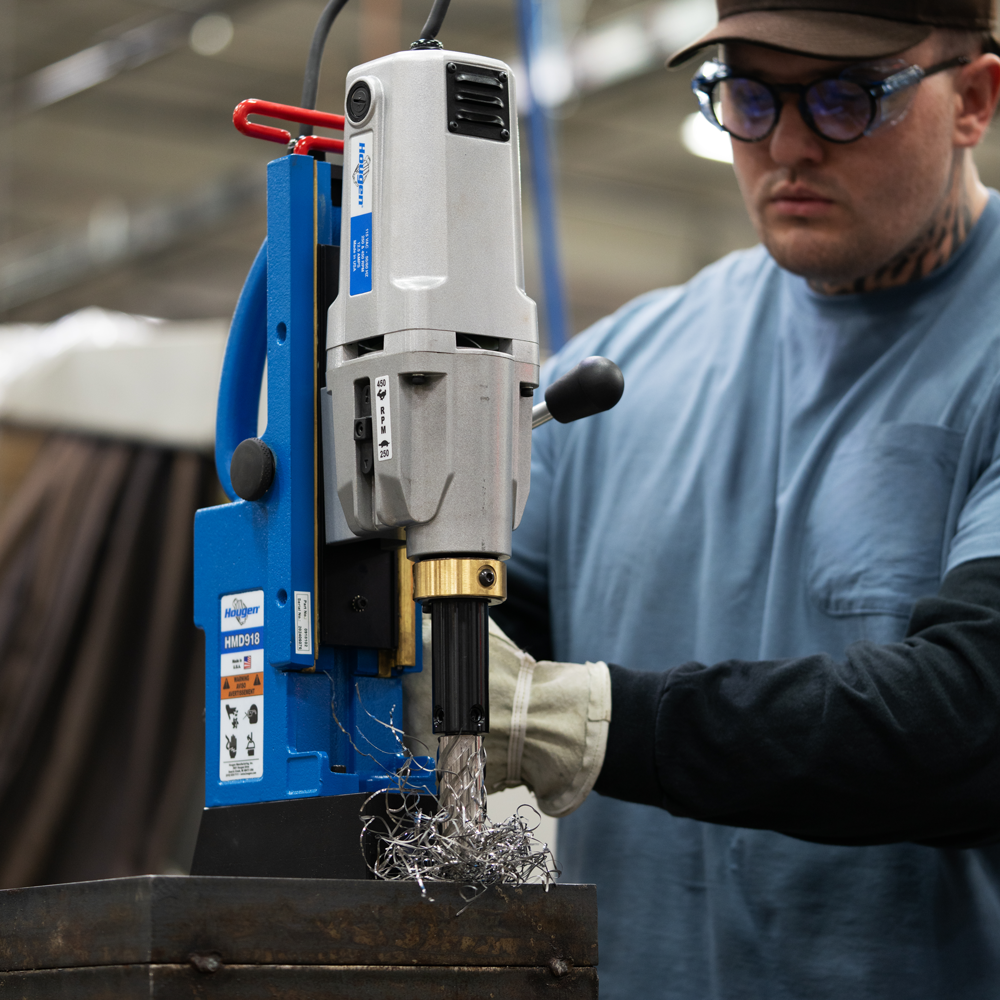

Drill holes up to 6″ deep, multiple stacked plates or extend your hole reach capability

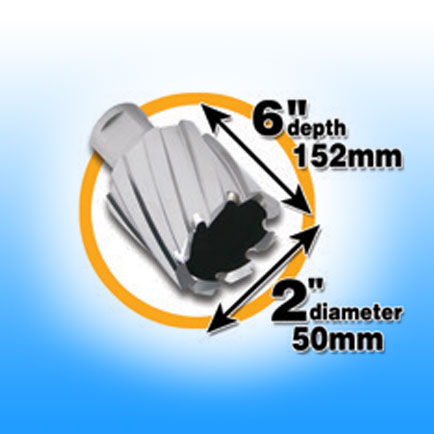

- 2-3/8″ x 6″ capacity
- Two Speed gear box – 250 & 450 RPM
- Pilot light
- Two stage magnet – 30% increase in power when motor is turned on

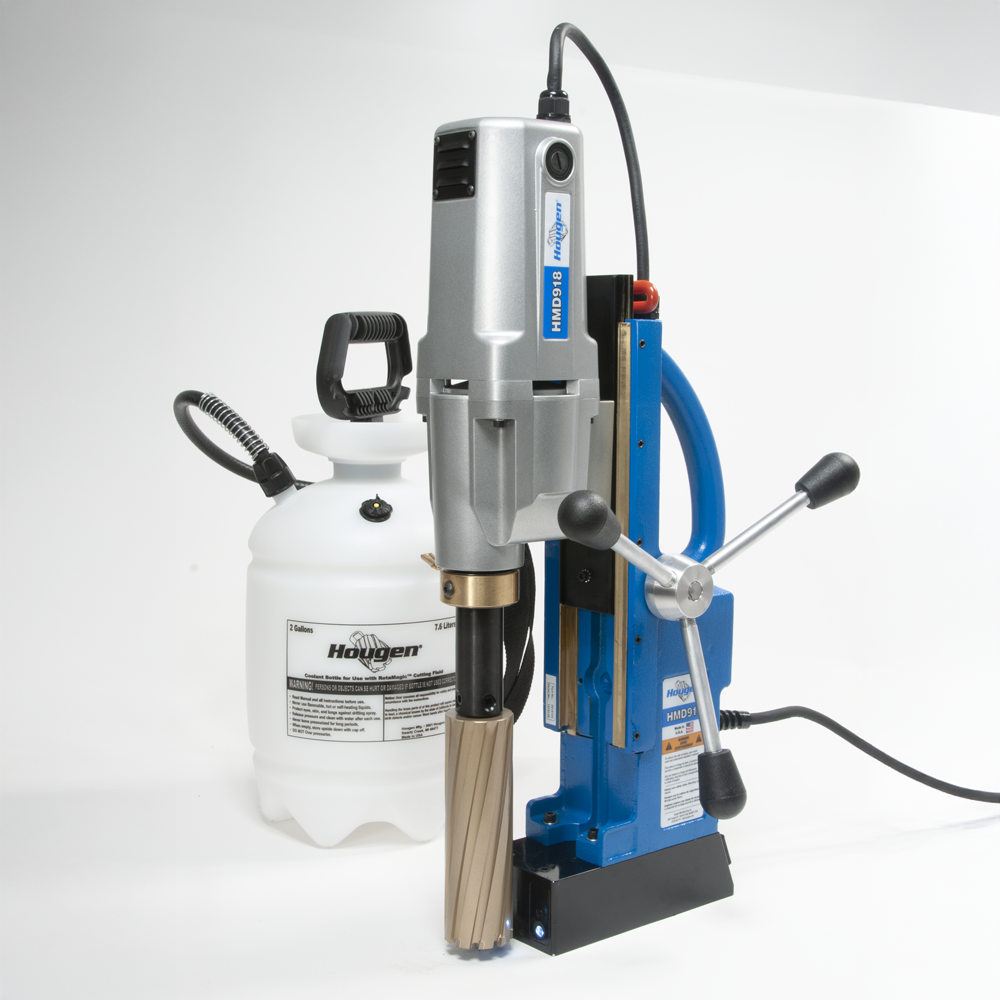

- Pressurized coolant system
- Many accessories are available for a portable machine shop including: drill chucks, tapping, countersink, and more…
- Feed handles quickly change from side to side
- Lift detector safety system
- Rear mounted controls
- Two year warranty
- Call our sales team for current promotions and sale prices

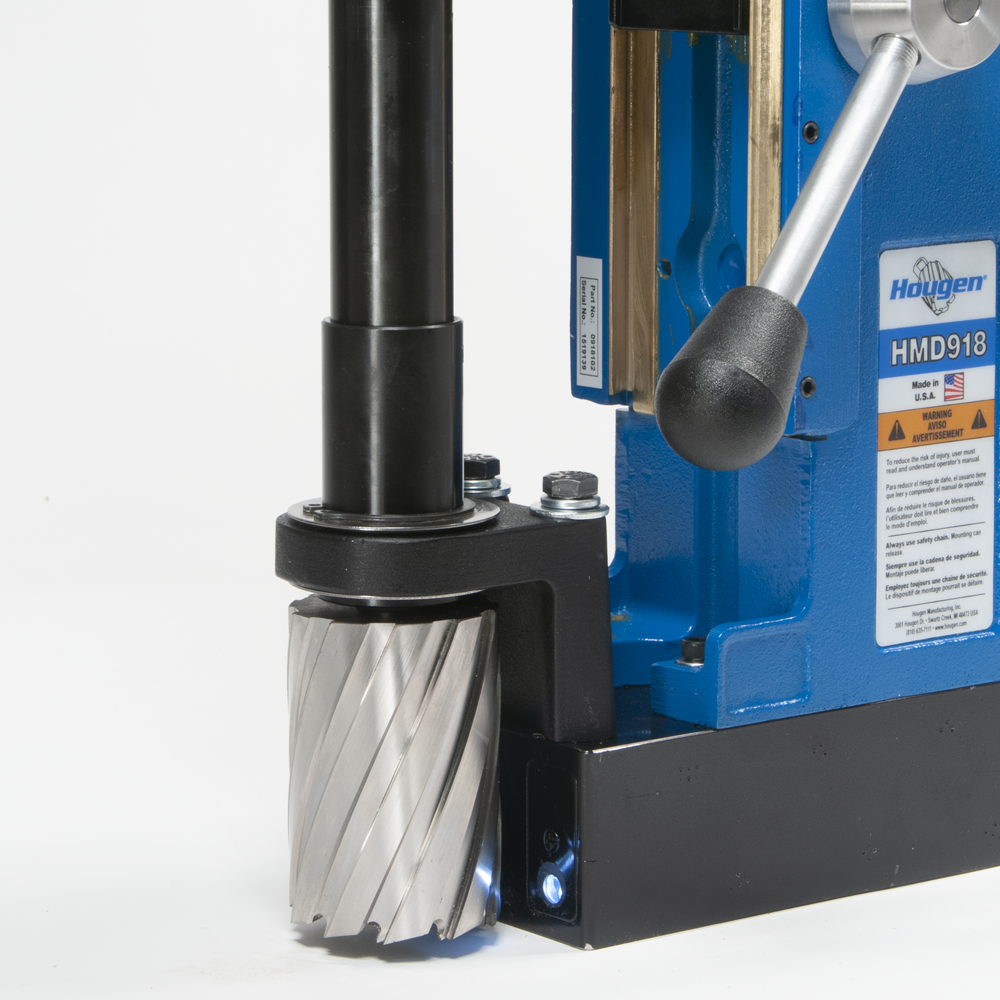

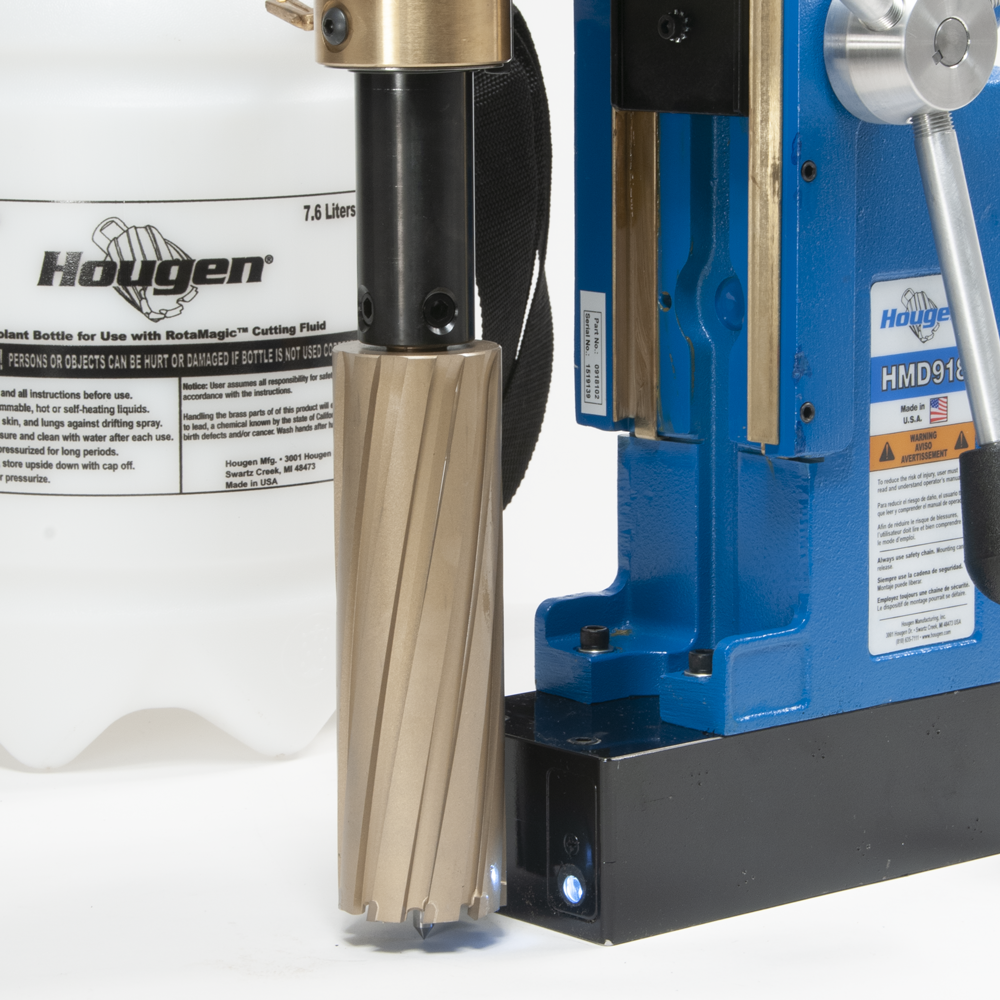

Now includes an additional arbor for positive slug ejection when using annular cutters up to 3″ deep.
$3,932.00
Specifications
| SPEC | INFO | ||
|---|---|---|---|
| Electrical System | 115V, 50/60 Hz – 13.5A, 1553W 230V, 50/60 Hz – 6.75A, 1553W |
||
| Motor | 12.5A (115V), 250/450 RPM | ||
| Diameter | 13/16″- 1-3/16″ (21mm – 30mm) | ||
| Depth | 6″ (152mm) max. | ||
| Stroke | 6.80″ (172.7mm) | ||
| Cutter/Mount | “12,000-Series” & Copperhead™ cutters, 3/4″ shank | ||
| Dimensions | 26-5/16/16″ H x 7-1/2″ W x 12-13/16″ L (668mm H x 191mm W x 325mm L) |
||
| Magnet | Base | 3-1/2″ W x 7-3/4″ L (89mm W x 197mm L) | |
| 1″ Plate(25mm) | 2385 lb. (1082 kg) | Drillpoint Breakaway 1195 lb. (542 kg) |
|
| 3/8″ Plate(9.5mm) | 1635 lb. (742 kg) | 765 lb. (347 kg) | |
| Weight | 44.2 lb. (20.1 kg) • Shipping 68 lb (30.8 kg) | ||
| Shipping Dimensions | 20 x 9.25 x 28.25″ (50.8 x 23.5 x 71.8 cm) | ||
| Need annular cutters for this mag drill? Click here to view! | |||
Need annular cutters for this mag drill? Click here to view
Models
| PART NO. | DESCRIPTION | VOLTAGE | COOLANT BOTTLE |
|---|---|---|---|
| 0918102 | HMD918 | 115V | X |
Cutters
“12,000-Series” Annular Cutters
The original mag drill annular cutter, Hougen’s "12,000-Series" are the standard for hole making. Sizes are available up to 3-1/16" in diameter and up to 6" depth of cut
“12,000-Series” TiN Coated Cutters
TiN Coated cutters increase tool life, reduce friction, and operate at cooler temperatures. For materials up to 325 BHN or gummy materials. Special Sizes and coatings are available...
Copperhead™ Carbide Tip Cutters
Carbide Tipped Cutters for extended tool life in abrasive & tough materials. Up to 6" deep and diameters to 3".
Pilots
Sometimes things happen. These tools allow you to take an existing hole and re-drill it to the larger correct size
Accessories
RotaMagic™ Super Concentrated Cutting Fluid
Slick-Stik™ Lubricant
RotaFoam™ Cutting Fluid
Extremely heavy-duty, high performance foamy lubricant for all types of metals and metal working applications.
RotaGel™ Cutting Lube
OP Manual
Fabricator’s Kits
The All-In-One Solution to Start Drilling Holes
Service & Support
TWO YEAR WARRANTY
