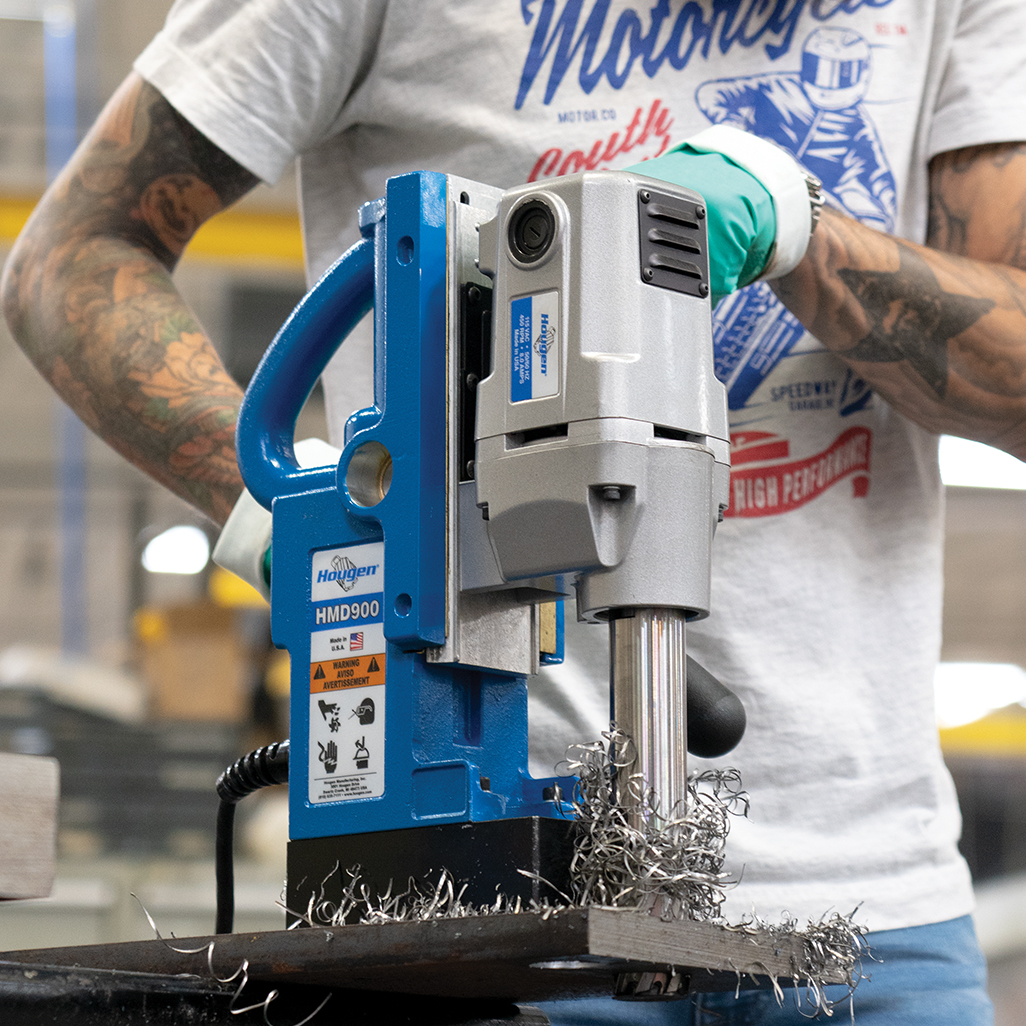

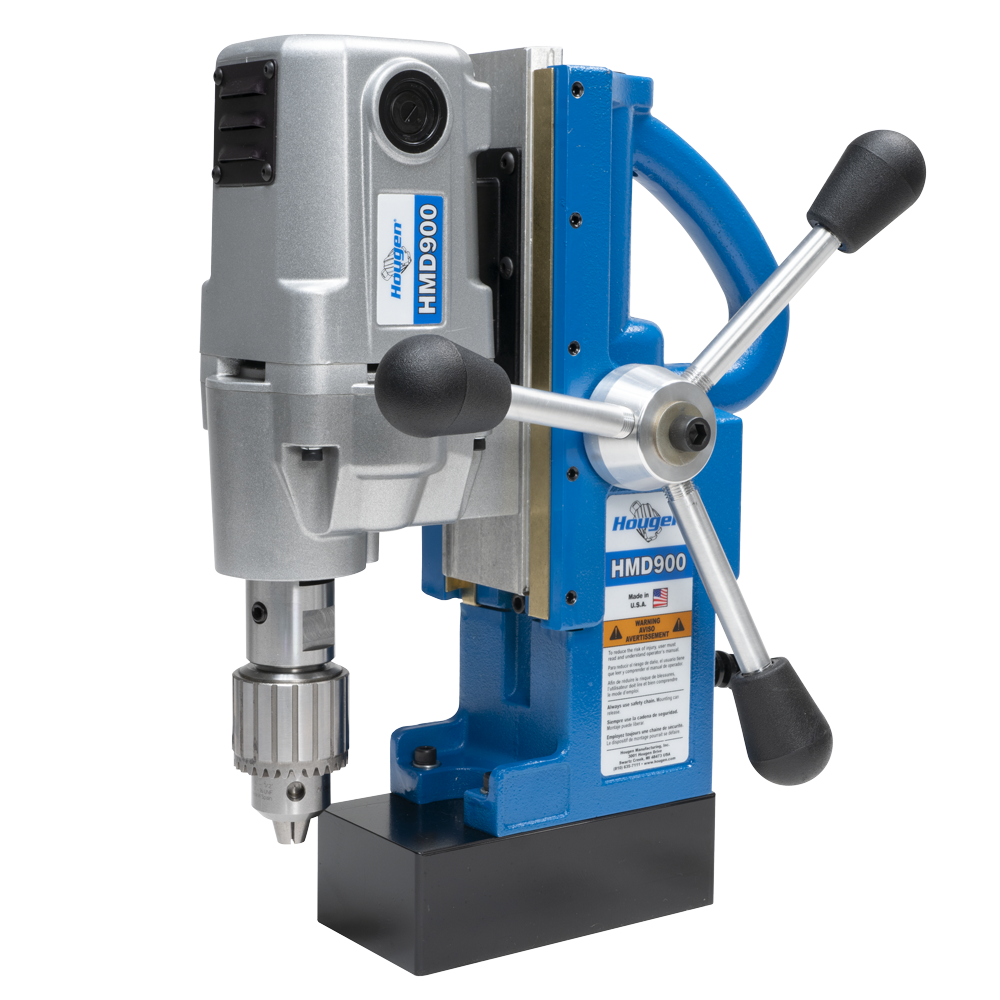

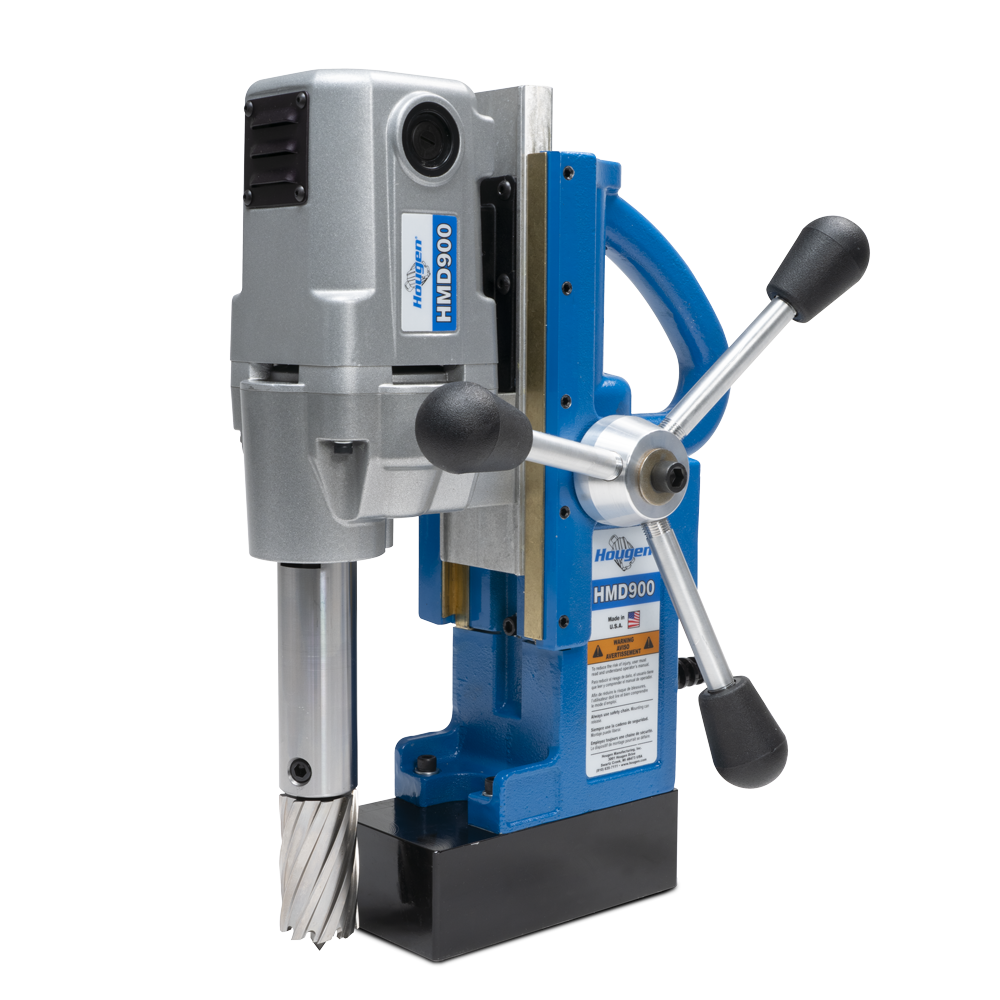

HMD900 Magnetic Drill
Lightweight, powerful, low cost mag drill for general fabrication.

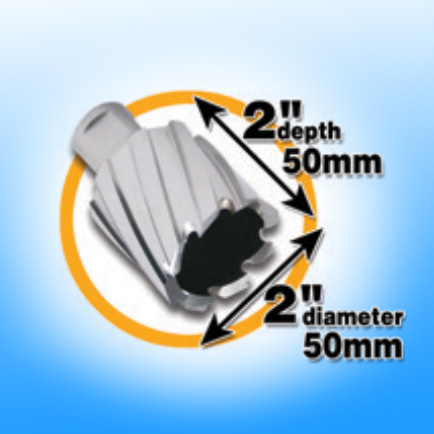

- Large 1-1/2″ x 2″ capacity
- Hidden motor cord
- Ergonomic housing
- Increased safety with less maintenance
- Spring slug ejection
- Slot Drive arbor for more accuracy and quicker change out of accessories
- Many accessories are available for a portable machine shop including: drill chucks, countersink, and more…
- Lift detector safety system
- Rear mounted controls
- Two year warranty
$1,199.00
Specifications
| SPEC | INFO | ||
|---|---|---|---|
| ELECTRICAL SYSTEM | 115V, 50/60 Hz – 9A, 1035W | ||
| MOTOR | 8A (115V), 450 RPM | ||
| DIAMETER | 7/16″- 1-1/2″ (12mm – 38mm) | ||
| DEPTH | 2″ (50mm) | ||
| CUTTER | “12,000-Series” & Copperhead™ Carbide cutters, 3/4″ shank | ||
| DIMENSIONS | 15-1/8″ H x 6-3/4″ W x 11-3/8″ L | ||
| (384mm H x 171mm W x 289mm L) | |||
| MAGNET | BASE (3.16″ W x 6.10″ L (79mm W x 167mm L)) | ||
| DEAD LIFT: (1″ / 25mm Plate): 1952 lb. (885 kg) | |||
| DEAD LIFT: (3/8″ / 9.5mm Plate): 1460 lb. (662 kg) | |||
| DRILL POINT BREAKAWAY: (1″ / 25mm Plate): 960 lb. (435 kg) | |||
| DRILL POINT BREAKAWAY: (3/8″ / 9.5mm Plate): 720 lb. (327 kg) | |||
| WEIGHT | 27.7 lb. (12.6 kg) | ||
| Need annular cutters for this mag drill? Click here to view! | |||
Need annular cutters for this mag drill? Click here to view
Models
| PART NO. | DESCRIPTION | VOLTAGE |
|---|---|---|
| 0900101 | HMD900 | 115V |
Cutters
“12,000-Series” Annular Cutters
The original mag drill annular cutter, Hougen’s "12,000-Series" are the standard for hole making. Sizes are available up to 3-1/16" in diameter and up to 6" depth of cut
“12,000-Series” TiN Coated Cutters
TiN Coated cutters increase tool life, reduce friction, and operate at cooler temperatures. For materials up to 325 BHN or gummy materials. Special Sizes and coatings are available...
Copperhead™ Carbide Tip Cutters
Carbide Tipped Cutters for extended tool life in abrasive & tough materials. Up to 6" deep and diameters to 3".
Pilots
Sometimes things happen. These tools allow you to take an existing hole and re-drill it to the larger correct size
Accessories
RotaMagic™ Super Concentrated Cutting Fluid
Slick-Stik™ Lubricant
RotaFoam™ Cutting Fluid
Extremely heavy-duty, high performance foamy lubricant for all types of metals and metal working applications.
RotaGel™ Cutting Lube
OP Manual
Fabricator’s Kits
The All-In-One Solution to Start Drilling Holes
Service & Support
TWO YEAR WARRANTY
