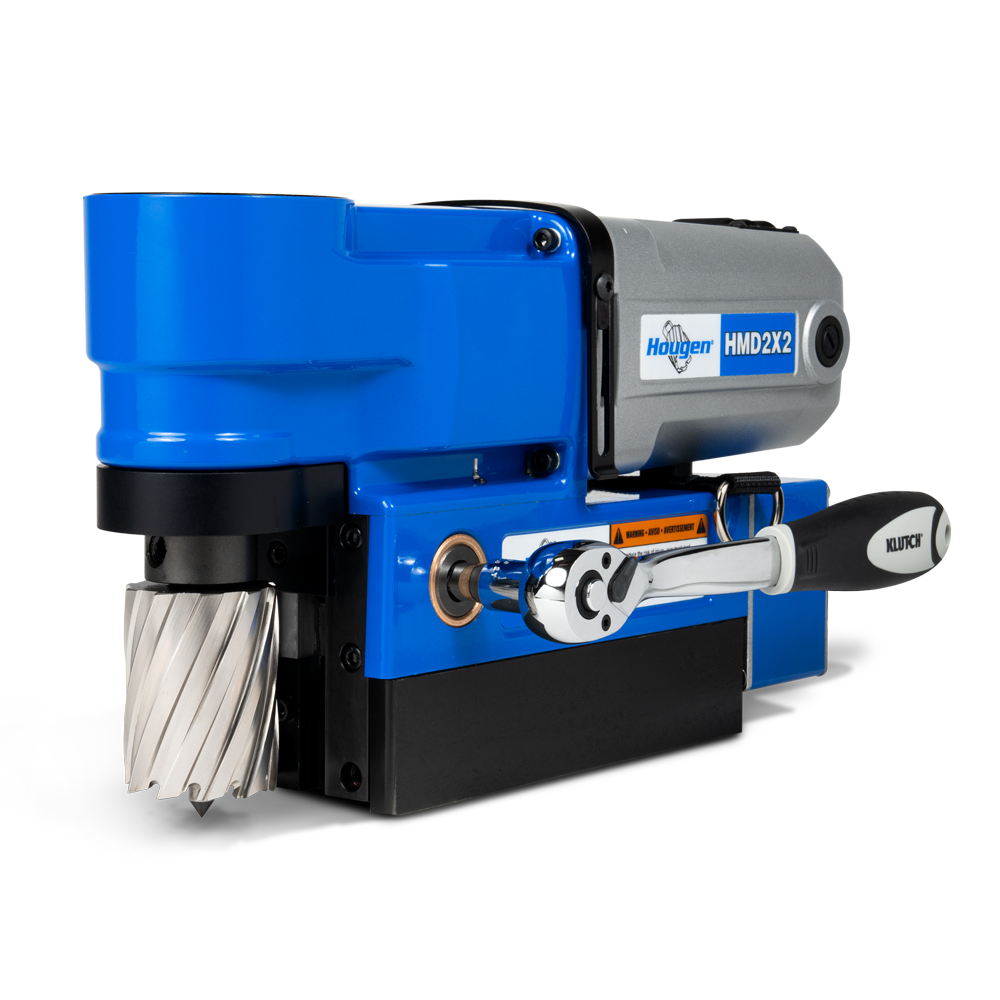

HMD2X2 Low Profile Two Speed Magnetic Drill

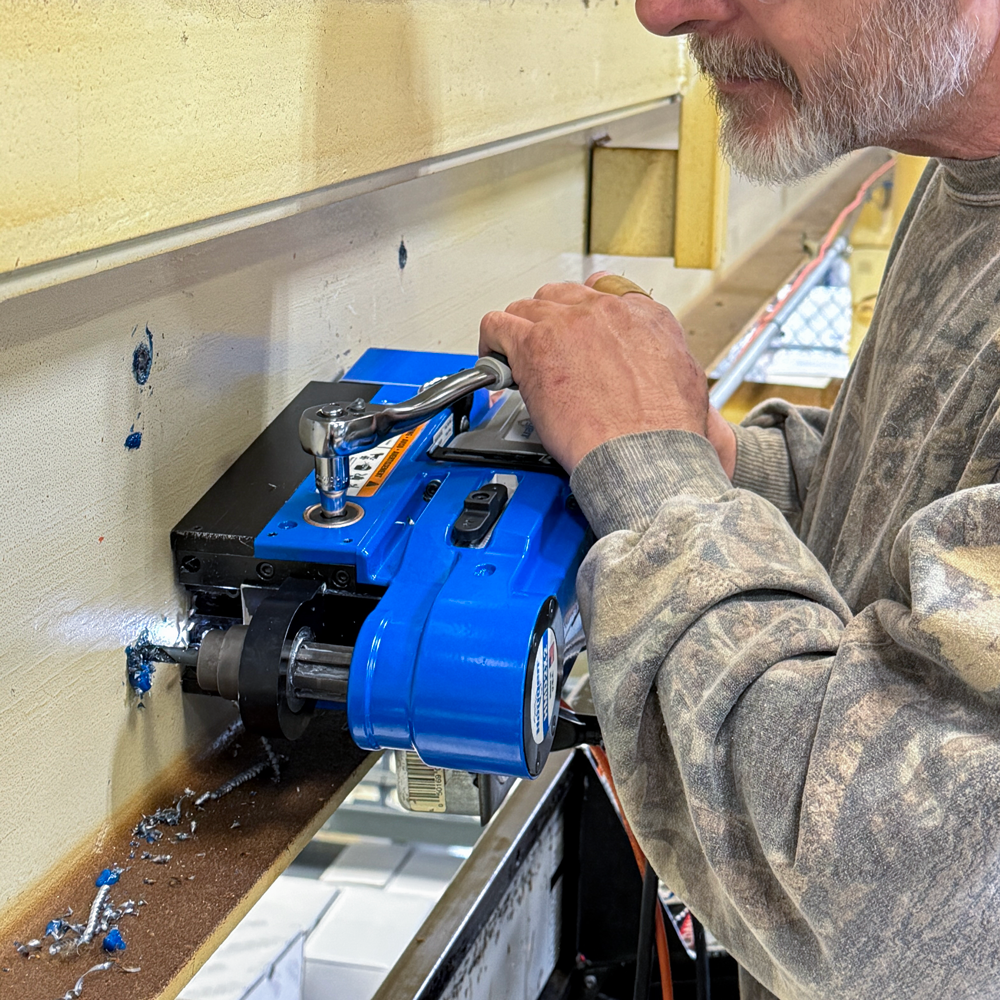

The perfect drill for general fabrication and drilling holes in confined spots
• Only 7-5/8″ high easily fits into tight spots
• Lightweight at only 29.2 lbs (13.2 kg)
• Spline arbor for smooth cuts and minimal maintenance
• Uses standard two flat shank annular cutters
• Pilot light for low light conditions
• Two stage magnet. Engages full power only when the
motor is turned on which increases magnet life
• Positive slug ejection
• High torque two speed gear box
• Carrying handle
• Lift detector safety system
• Ratchet drive feed for confined spaces and convenience
• Carrying case (20213) & ratchet included
• Two year warranty
$2,699.00
Specifications
| SPEC | INFO | ||
|---|---|---|---|
| ELECTRICAL SYSTEM | 115V, 50/60 Hz – 10A, 1035W | ||
| MOTOR | 9A (120V), 300 / 450 RPM | ||
| DIAMETER | 7/16″- 2″ (12mm – 50mm) | ||
| DEPTH | 2″ (50mm) | ||
| CUTTER | “12,000-Series” & Copperhead™ Carbide cutters, 3/4″ shank | ||
| DIMENSIONS | 7-5/8″ H x 4″ W x 13-3/4″ L | ||
| (194mm H x 102mm W x 349mm L) | |||
| MAGNET | BASE: 3-1/2″ W x 9″ L (89mm W x 203mm L) | ||
| DEAD LIFT: (1″ / 25mm Plate): 1980 lb. (889 kg) | |||
| DEAD LIFT: (3/8″ / 9.5mm Plate): 1405 lb. (637 kg) | |||
| DRILL POINT BREAKAWAY: (1″ / 25mm Plate): 905 lb. (411 kg) | |||
| DRILL POINT BREAKAWAY: (3/8″ / 9.5mm Plate): 640 lb. (290 kg) | |||
| WEIGHT | 29.2 lb. (13.2 kg) | ||
| SHIPPING WEIGHT | Shipping 38.2 lb (17.3 kg) | ||
| Need annular cutters for this mag drill? Click here to view! | |||
Need annular cutters for this mag drill? Click here to view
Models
| PART NO. | DESCRIPTION | VOLTAGE |
|---|---|---|
| 0202101 | HMD2X2 | 115V |
Cutters
“12,000-Series” Annular Cutters
The original mag drill annular cutter, Hougen’s "12,000-Series" are the standard for hole making. Sizes are available up to 3-1/16" in diameter and up to 6" depth of cut
“12,000-Series” TiN Coated Cutters
TiN Coated cutters increase tool life, reduce friction, and operate at cooler temperatures. For materials up to 325 BHN or gummy materials. Special Sizes and coatings are available...
Copperhead™ Carbide Tip Cutters
Carbide Tipped Cutters for extended tool life in abrasive & tough materials. Up to 6" deep and diameters to 3".
Pilots
Sometimes things happen. These tools allow you to take an existing hole and re-drill it to the larger correct size
Accessories
RotaMagic™ Super Concentrated Cutting Fluid
Slick-Stik™ Lubricant
RotaFoam™ Cutting Fluid
Extremely heavy-duty, high performance foamy lubricant for all types of metals and metal working applications.
RotaGel™ Cutting Lube
